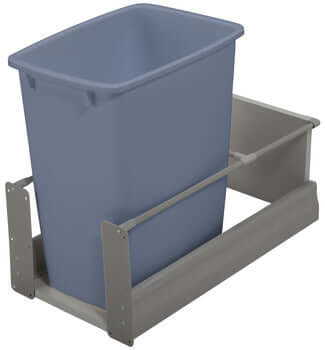

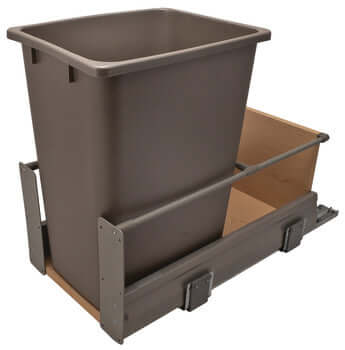

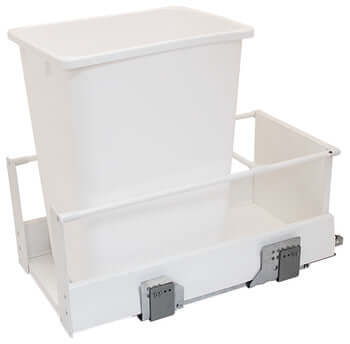

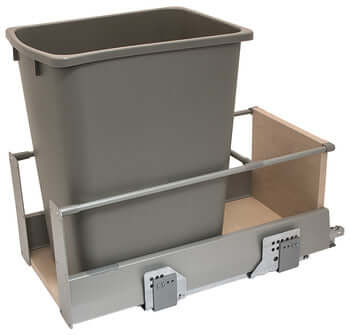

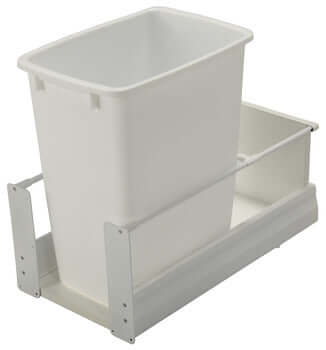

Waste Bin Pull-Out Matrix Single
This Waste Bin Pull-Out Single, combines heavy-duty construction with an elegant design. The single-bin unit features a double-wall steel frame and melamine bottom and back for durability and style. Pre-assembled with a plastic bin, this pull-out is designed for Face Frame or Frameless cabinets, providing versatile waste storage for your kitchen.
SPECIFICATIONS:
Internal Cabinet Depth (min): 21 13/16"
Internal Cabinet Width: 12 - 13 1/2 inches
Material/Finish: Steel frame; Particle board bottom & back; Plastic bin
Capacity: Supports up to 110 lbs
Full Extension Runners: Ensures smooth, progressive extension

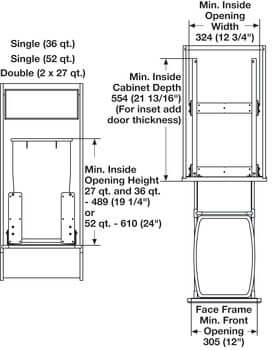

Minimum Opening Widths:
305 mm (12") Face Frame
324 mm (12 3/4") Frameless
343 mm (13 1/2") with reversed door brackets for Full Overlay
Installation: Quick bottom mount with secure alignment to face frame using back bracket.
PACKAGE INCLUDES:
Mounting screws
Sizing instructions
Installation guide
ADDITIONAL FEATURES:
Soft & Silent: Reduces noise during operation
Full Extension: Easy access to entire bin area
Ideal for Compact Spaces: Designed for smaller cabinet widths
